INTRODUCTION
What is Fluid Mechanics ?
Fluid mechanics is the branch of physics that studies the behavior of fluids (liquids and gases) and their interactions with other fluids and surfaces. It involves understanding various properties, such as: Pressure, Velocity, Density, Viscosity. It’s a fundamental field that helps us understand and predict fluid behavior in various natural and engineered systems. Understanding the behavior of fluids is crucial for a wide range of applications, including engineering, meteorology, medicine, and environmental science.
Branches of Fluid Mechanics
Fluid mechanics is broadly divided into two main branches:
(a) Fluid Statics (Hydrostatics)
- Study of fluids at rest
- No relative motion between fluid layers
- Deals with:
- Pressure variation
- Forces on submerged surfaces
- Buoyancy and flotation
(b) Fluid Dynamics
Study of fluids in motion
Further divided into:
- Kinematics of fluids – motion without considering forces
- Dynamics of fluids – motion considering forces and energy
Table of Contents
2. What is Fluid?
A fluid is a substance that continuously flows under an external force, regardless of the magnitude of the force. They are characterized by their ability to flow and conform to the shape of their containers. The molecules within a fluid are free to move past one another, allowing for this fluidity and the transmission of pressure in all directions. This unique property of fluids makes them essential in numerous natural and engineered systems, from the flow of water in rivers to the circulation of air in the atmosphere and the operation of hydraulic machines.
Classification of Fluids
a) Ideal Fluid
- No viscosity (frictionless)
- Incompressible
- Hypothetical (does not exist in reality)
b) Real Fluid
- Has viscosity
- All actual fluids are real fluids
c) Newtonian Fluid
- Shear stress is directly proportional to velocity gradient
- Example: Water, air
d) Non-Newtonian Fluid
- Does not follow Newton’s law of viscosity
- Example: Toothpaste, blood
e) Compressible Fluid
- Density changes significantly with pressure
- Example: Gases
f) Incompressible Fluid
- Density remains nearly constant
- Example: Liquids
Properties of Fluids
Viscosity: Viscosity is a measure of a fluid’s resistance to deformation and flow. It quantifies the internal friction between layers of a fluid as they move relative to each other. A fluid with high viscosity, such as honey, flows slowly and resists motion, while a fluid with low viscosity, like water, flows easily and quickly.
a) Density (ρ)
- Mass per unit volume
- Unit: kg/m³
b) Specific Weight (γ)
- Weight per unit volume
- γ = ρg
c) Specific Gravity
- Ratio of fluid density to density of water
d) Viscosity (μ)
- Resistance to flow
- Higher viscosity → thicker fluid
e) Surface Tension
- Force acting on the surface of a liquid due to molecular attraction
f) Capillarity
- Rise or fall of liquid in a narrow tube
g) Vapor Pressure
- Pressure at which a liquid starts vaporizing
5. Types of Fluid Flow
a) Steady and Unsteady Flow
- Steady: Properties do not change with time
- Unsteady: Properties change with time
b) Uniform and Non-uniform Flow
- Uniform: Same velocity at all points
- Non-uniform: Velocity varies
c) Laminar and Turbulent Flow
- Laminar: Smooth, orderly flow
- Turbulent: Chaotic flow
d) Compressible and Incompressible Flow
- Based on density variation
6. Basic Concepts in Fluid Mechanics
a) Pressure
- Force per unit area
- Unit: Pascal (Pa)
b) Shear Stress
- Force acting tangentially per unit area
c) Continuum Hypothesis
- Fluid is treated as a continuous medium (ignores molecular structure)
7. Important Laws and Principles

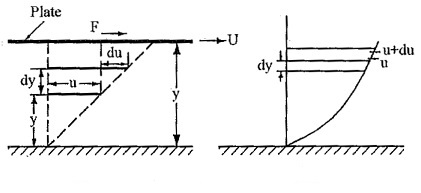

a) Newton’s Law of Viscosity
Shear stress is proportional to velocity gradient:
τ=μdydu
Where:
- τ = shear stress
- μ = dynamic viscosity
- du/dy = velocity gradient
b) Pascal’s Law
- Pressure applied at one point in a fluid is transmitted equally in all directions
c) Archimedes’ Principle
- A body immersed in fluid experiences an upward buoyant force equal to the weight of displaced fluid
d) Bernoulli’s Theorem
Energy conservation in fluid flow:
ρgP+2gV2+z=constant
8. Applications of Fluid Mechanics
- Design of pipes and pipelines
- Hydraulic machines (pumps, turbines)
- Aerodynamics (aircraft design)
- Weather prediction
- Blood flow analysis in biomedical engineering
- Marine engineering (ships, submarines)
9. Importance of Fluid Mechanics
Fluid mechanics is essential in engineering because it helps:
- Understand fluid behavior
- Design efficient systems
- Predict flow patterns
- Improve performance of machines
